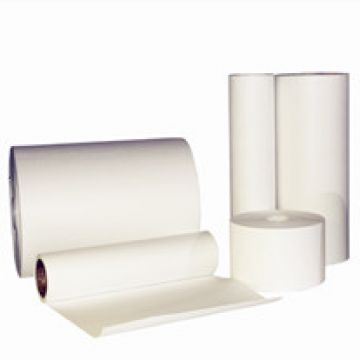

0.02μm Absolute Sterilization liquid filtration membrane of hydrophilic PVDF/PTFE(ZF series)

  • Material : PVDF/ PTFE, Permanent hydrophilic modification
  • Pore size : 0.10, 0.22, 0.45, 1.0, 3.0, 5.0 μm
  • Form : Flat roll membrane
  • Width : 40 ~ 1000 mm
  • Thickness : 100 ~ 500 μm
  • Facture : Phase inversion / Puffing tensile / Chemical reaction

Technical Specification

Technical Data

Product Modelx 1010x 1020x 1040x 1100
Pore Size (μm)0.100.220.451.0

Absolute Ethanol First

Bubble Pressure (MPa)
0.160.120.070.03

Water Flow Rate

m3/m2·hr@0.02MPa, 25℃

1.03.04.08.0
Reinforcement MaterialNon(1), PP(3), PET(4)
Thickness (μm)

100 ~ 500

Explanation:

1. Product implementation standard: QB/T01-2015 "PTFE microporous membrane"

2. The above first bubble pressure and flow rate data are typical values

3. The X in the product model row indicates reinforement material
