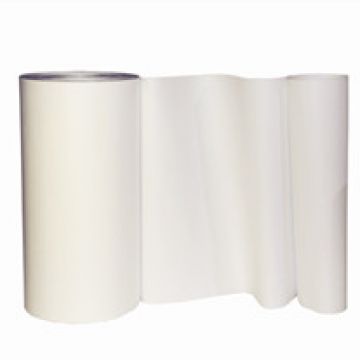

5μm Large flux liquid filtration membrane of hydrophilic PTFE（XH series）

Material : PTFE, Permanent hydrophilic modification
Pore size : 1.0, 1.2, 3.0, 5.0 µm
Form : Flat roll membrane
Width : 40 ~ 1000 mm
Thickness : 80 ~ 150 µm
Facture : Phase inversion / Chemical reaction

Technical Specification

Technical Data

Product Model	X1100	X1120	X1300	X1500
Pore Size (μm)	1.0	1.2	3.0	5.0
Water Flow Rate (ml/cm²·min@10kPa, 25℃)	25	30	35	60
Standard Retention Rate (%)	> 95
Reinforcement Material	PET - PE(4)
Thickness (μm)	80 ~ 150
Pure Water Wetting Time (s)	< 2, Instant

Explanation:

1. Product implementation standard: QB/T01-2015 "PTFE microporous membrane"

QB/T05-2015 "Fluorine material microporous membrane - medical"

2. The above first bubble pressure and flow rate data are typical values

3. The X in the product model row indicates reinforement material
