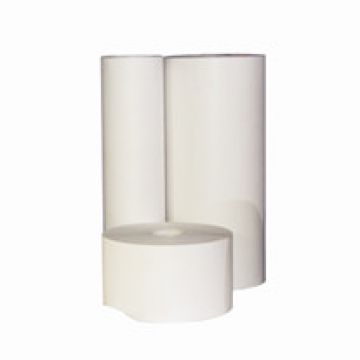

0.05μm Ultra clean gas filter membrane with double layer hydrophobic PTFE（LF series）

Technical Data

Product Model	X2002	X2005	X2010	X2020	X2040
Pore Size (μm)	0.02	0.05	0.10	0.22	0.45
Absolute Ethanol First Bubble Pressure (MPa)	0.3	0.2	0.16	0.12	0.07
Air Flow Rate （m³/m²·hr@10KPa, 25℃）	100	150	250	400	600
Reinforcement Material	Non(1), PP(3), PET(4)
Thickness (μm)	200 ~ 500

Explanation:

1. Product implementation standard: QB/T01-2015 "PTFE microporous membrane"

QB/T05-2015 "Fluorine material microporous membrane - medical"

2. The above first bubble pressure and flow rate data are typical values

3. The X in the product model row indicates reinforement material
