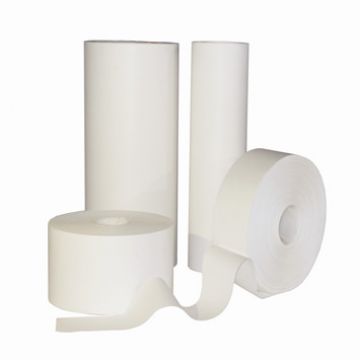

0.22μm Absolute Sterilization gas filtration membrane of hydrophobic PTFE（KF series）

Technical Data

Product Model	X1300	X1100	X1040	X1020	X1010
Pore Size (μm)	3.0	1.0	0.45	0.22	0.10
Absolute Ethanol First Bubble Pressure (MPa)	0.015	0.03	0.07	0.12	0.16
Air Flow Rate （m³/m²·hr@0.01MPa, 25℃）	1600	1000	800	400	300
Reinforcement Material	Non(1), PP(3), PET(4)
Thickness (μm)	60 ~ 500

Explanation:

1. Product implementation standard: QB/T01-2015 "PTFE microporous membrane"

QB/T05-2015 "Fluorine material microporous membrane - medical"

2. The above first bubble pressure and flow rate data are typical values

3. The X in the product model row indicates reinforement material
