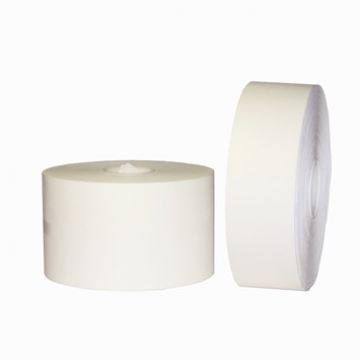

H10-14 degree gas filtration membrane of hydrophobic PTFE(CF series)

  • Material : PTFE / PVDF
  • Pore size : 1.2, 3.0, 5.0, 8.0 μm
  • Form : Flat roll membrane
  • Width : 40 ~ 1000 mm
  • Thickness : 60 ~ 200 μm
  • Facture : Puffing tensile / Phase inversion

Technical Specification

Technical Data

Product ModelX1120X1300X1500X1800
Pore Size (μm)1.23.05.08.0

Absolute Ethanol First

Bubble Pressure (KPa)

18853
Air Flow Rate

(m3/m2·hr@3KPa, 25℃)

300500600800
Reinforcement MaterialNon(1), PP(3), PET(4)
Thickness (μm)60 ~ 200

Explanation:

1.  Product implementation standard: QB/T01-2015 "PTFE microporous membrane"

2. The above first bubble pressure and flow rate data are typical values

3. The X in the product model row indicates reinforement material
