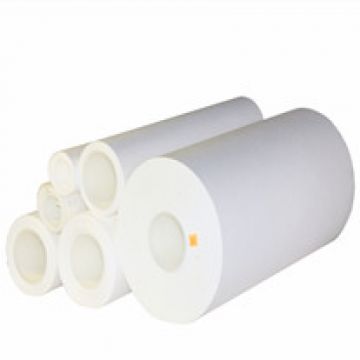

Special separation membrane of functional modification PVDF（XF series）

Technical Data

Product Model	X1040	X1100	X1200	X1500
Pore Size (μm)	0.45	1.0	2.0	5.0
Absolute Ethanol First Bubble Pressure (MPa)	0.06	0.03	0.015	0.008
Thickness (μm)	70 ~ 300
Reinforcement Material	Non(1), PP(3), PET(4)
Application	Adsorption Separation, Affinity Separation, Chromatograph Separation, Ion Exchange Separation

Explanation:

1. Product implementation standard: QB/T02-2008 "PVDF microporous membrane"

QB/T05-2015 "Fluorine material microporous membrane - medical"

2. The above first bubble pressure and flow rate data are typical values

3. The X in the product model row indicates reinforement material
