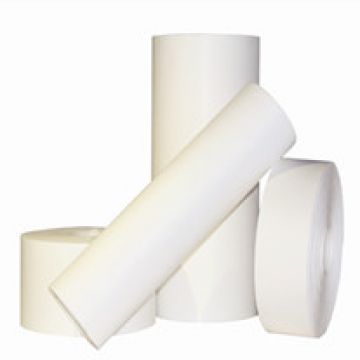

Liquid filtration flat membrane - FF Series

  • Material : PVDF, Permanent hydrophilic modification
  • Pore size : 30K, 50K, 100K, 150K Dalton
  • Form : Flat roll membrane
  • Width : 40-1000 mm
  • Thickness : 100 ~ 250 μm
  • Facture : Phase inversion / Chemical reaction

Technical Specification

Technical Data

Product ModelFF41003FF41005FF41008FF41015
Pore Size (Dalton)30K50K100K150K
Maximum Pore Size (μm)
0.030.050.080.15

Water Flow Rate

(m3/m2·hr@0.1MPa, 25℃)

0.40.81.22.0
Reinforcement MaterialPET(4)
Thickness (μm)100 - 250

Explanation:

1. Product implementation standard: QB/T02-2008 "PVDF microporous membrane"

   QB/T05-2015 "Fluorine material microporous membrane - medical"

2. The above first bubble pressure and flow rate data are typical values
