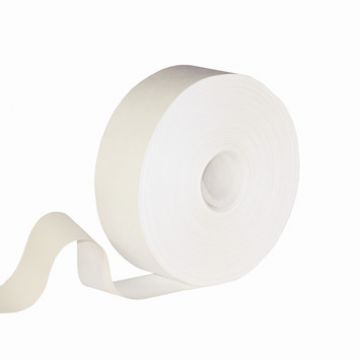

Liquid filtration flat membrane - VF Series

Technical Data

Product Model	X1100 X2100	X1040 X2040	X1020 X2020	X1010 X2010
Pore Size (μm)	1.0	0.45	0.22	0.10
Absolute Ethanol First Bubble Pressure (MPa) Orifice Model Data*	0.03 0.008*	0.06 0.015*	0.12 0.03*	0.16 0.05*
Water Flow Rate (m³/m²·hr@20KPa, 25℃)	6.0	3.0	2.0	1.0
Reinforcement Material	Non(1), PP(3), PET(4),
Thickness (μm)	70 ~ 200

Explanation:

1. Product implementation standard: QB/T02-2008 "PVDF microporous membrane"

2. The above first bubble pressure and flow rate data are typical values

3. The X in the product model row indicates reinforement material
