0.02μm Protein removal ultra filtration membrane of hydrophilic PVDF

Product Features : Permanent hydrophilic, Ultrahigh precision, Low adsorption
Typical Applications : Purification, Protein recovery, Virus removal
Material : PVDF, Permanent hydrophilic modification
Pore size : 30K, 50K, 100K, 150K Dalton
Width / Thickness : 40-1000 mm / 100-250 μm

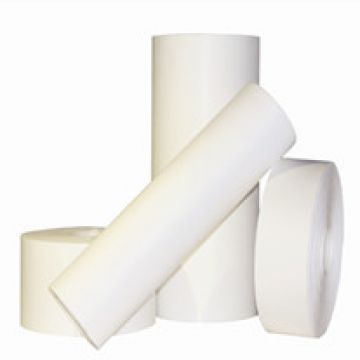

Form : Flat roll membrane
Facture : Phase inversion / Chemical reaction

Technical Specification

Technical Data

Product Model	FF41003	FF41005	FF41008	FF41015
Pore Size (Dalton)	30K	50K	100K	150K
Maximum Pore Size (μm)	0.03	0.05	0.08	0.15
Water Flow Rate (m³/m²·hr@0.1MPa, 25℃)	0.4	0.8	1.2	2.0
Reinforcement Material	PET(4)
Thickness (μm)	100 - 250

Explanation:

1. Product implementation standard: QB/T02-2008 "PVDF microporous membrane"

QB/T05-2015 "Fluorine material microporous membrane - medical"

2. The above first bubble pressure and flow rate data are typical values
